FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)

SKU: MRSE1000B
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS
Price: $1,755.00
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)
FLOODLIGHT 1000W HEAVY DUTY PHOENIX PRODUCTS (MRSE1000B)
(Click to see larger image and other views)
Product Details
MRSE1000B (1011002)

MANUFACTURER: PHOENIX PRODUCTS

DESCRIPTION:

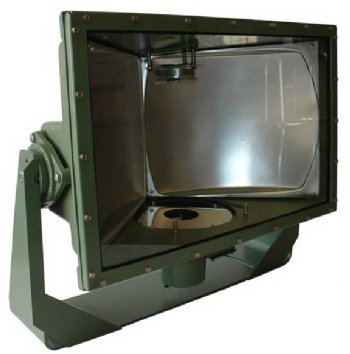

PHOENIX SUPER HEAVY DUTY, HAZARDOUS RATED FLOODLIGHT, WIDE OPTICS (REMOTE BALLAST REQUIRED - ORDER SEPARATELY)
(LAMP NOT INCLUDED WITH FIXTURE - ORDER SEPARATELY)

NOTE: THE MRSE SERIES FLOODLIGHT IS A HAZARDOUS RATED, HEAVY DUTY FLOODLIGHT SUITABLE FOR THE HARSHEST ENVIRONMENTS. THE MRSE IS DESIGNED TO ABSORB SHOCK AND VIBRATION AND IS PERFECT FOR EARTH MOVING MACHINERY, HEAVY EQUIPMENT AND PORT CONTAINER CRANES.

FEATURES:

HOUSING: SEAMLESS COPPER-FREE, MARINE GRADE CAST ALUMINUM HOUSING PROVIDES EXCELLENT CORROSION RESISTANCE AND IS LIGHT WEIGHT FOR EASY HANDLING. THE ENCLOSURE IS CSA CERTIFIED TO NEMA 4X STANDARDS. THE MRSE THERMOSET, POWDER COATED FINISH COMES IN STANDARD PHOENIX GREEN

SOCKET: SILICONE AND EPDM RUBBER LAMP ISOLATION SOCKET. THE MULTIPLANE SOCKET FLOAT AND LAMP STABILIZER ABSORBS SHOCK AND VIBRATION AND HOLDS THE LAMP IN PLACE FOR EXTENDED LAMP LIFE.

LENS: HEAVY DUTY TEMPERED GLASS LENS 7/32" THICK TO WITHSTAND IMPACT, HEAT AND THERMAL SHOCK

GASKET: HIGH TEMPERATURE SILICONE AND EPDM GASKETS PROVIDE A WATERTIGHT SEAL TO ELIMINATE WATER, DIRT AND MOISTURE CONTAMINATION

REMOTE BALLAST: SHOCK AND VIBRATION RESISTANT BALLAST AVAILABLE IN MH (METAL HALIDE - WHITE LIGHT) OR HPS (HIGH PRESSURE SODIUM - YELLOW/ORANGE LIGHT), BALLASTS ARE AVAILABLE IN QUAD-TAP (120V, 208V, 240V, 277V) 60HZ OR 480V 60HZ
NOTE: BALLAST IS ORDERED SEPARATELY

MOUNTING BRACKET: THERMOSET, POWDER COATED 1/4" STEEL MOUNTING BRACKET

HARDWARE: ALL EXTERNAL HARDWARE IS STAINLESS STEEL TO PREVENT CORROSION

WIRING: SPLICE BOX IS SUPPLIED WITH 1/2" NPT TAPPED HOLE FOR CONNECTION TO SUITABLE BALLAST

APPROVALS:
UL LISTED 1572 (OUTSIDE WET LOCATION)
UL595 (MARINE OUTSIDE TYPE SALTWATER)
UL844 HAZARDOUS LOCATION, CLASS 1, DIVISION 1
CSA CERTIFIED (ENCLOSURE NEMA TYPE 4X)
US COAST GUARD ACCEPTED

DIMENSIONS:
WIDTH: 26-5/8"
HEIGHT: 21-7/8"
DEPTH: 11-3/4"

WEIGHT: 64 LBS.

PLEASE CALL FOR OTHER OPTIONS AND ACCESSORIES
