EM2-140-MF-120-277
MANUFACTURER: PHOENIX LIGHTING
8/10/23 WE CURRENTLY HAVE 1 UNIT IN STOCK READY FOR IMMEDIATE PURCHASE & SHIPPING
THIS UNIT HAS BEEN DISCONTINUED AND IS NO LONGER SUPPORTED. THIS PRODUCT HAS BEEN REPLACED BY THE EM3-LO-MF-120-277-50K
DESCRIPTION:

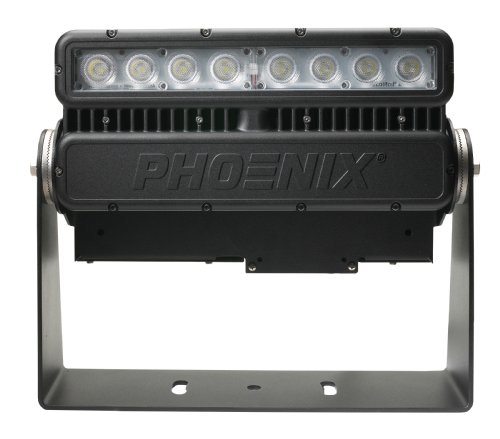

ECOMOD 2 SERIES LED FLOODLIGHT, 151 WATT (UP TO 15,900 LUMENS), 120V-277VAC, 50-60HZ, 5000K COLOR TEMPERATURE (COOL WHITE), MEDIUM FLOOD OPTIC, CREE XHP LED'S WITH 50,000 HOUR RATED LIFE, CLEAR TEMPERED GLASS LENS, MARINE GRADE, POWDER COATED CAST ALUMINUM HOUSING, ADJUSTABLE POWDER COATED STEEL MOUNTING HARP, BLACK THERMOSET POWDER COAT FINISH, MARINE GRADE 316 STAINLESS STEEL HARDWARE, FULLY POTTED DRIVER IN 120-277V (ALSO AVAILABLE IN 277-480V), DRIVER IS REPLACEABLE AND FEATURES OVERLOAD, OVER VOLTAGE, OVER TEMPERATURE AND SHORT CIRCUIT PROTECTION, 0-10V DIMMING OPTION (DIM), 17 GAUGE, 3-CONDUCTOR CORD 72 INCHES IN LENGTH, 0.37 INCH TO 0.50 INCH CORD GRIP AS STANDARD, OPTIONAL THROUGH WIRING (TW) , 4KV LINE TO LINE & 24V LINE TO EARTH SURGE PROTECTION, 360 DEGREE HARP ROTATION, INDEXED AIMING AND LOCKABLE AT 5 DEGREE INCREMENTS, 6 FOOT CORD INCLUDED WITH FIXTURE, SAFETY CABLE INCLUDED WITH FIXTURE, IP66 RATED
CONSTRUCTION:
MARINE GRADE, POWDER COATED CAST ALUMINUM HOUSING, ADJUSTABLE POWDER COATED STEEL MOUNTING HARP
FINISH:
BLACK THERMOSET POWDER COAT FINISH
HARDWARE:
MARINE GRADE 316 STAINLESS STEEL
LENS:
CLEAR TEMPERED GLASS
OPTIC DEGREE:
MEDIUM FLOOD, 50 DEGREE OPTIC
LIGHT SOURCE:
CREE XHP LIGHT EMITTING DIODES (50,000 HOUR RATED LIFE)
CRI >70
150 WATT (UP TO 15,900 LUMENS) ALSO AVAILABLE IN 303 WATT AND 450 WATT UNITS
5000K COLOR TEMPERATURE AS STANDARD (COOL WHITE), ALSO AVAILABLE IN 4000K NEUTRAL WHITE AND 2700K WARM WHITE
POWER SOURCE:
120-277V AC, 50-60HZ REPLACEABLE (ALSO AVAILABLE IN 277V-480V AC, 50-60HZ)
OVERLOAD, OVER VOLTAGE, OVER TEMPERATURE & SHORT CIRCUIT PROTECTION
0-10V DIMMING OPTION (DIM)
SURGE PROTECTION:
4KV LINE TO LINE, 2KV LINE TO EARTH
WIRING:
STRANDED WIRES
17 GAUGE, 3-CONDUCTOR CORD, 72 INCHES IN LENGTH (UL & CE APPROVED)
THROUGH WIRE OPTIONAL
AMBIENT OPERATING TEMPERATURE:
-40C TO +50C
DESIGNED FOR USE IN AREAS ALLOWING AIR FLOW
HUMIDITY RANGE:
0% TO 100%
MOUNTING:
360 DEGREE HARP ROTATION
INDEXED AIMING AND LOCABLE IN 5 DEGREE INCREMENTS
BOOM MOUNT KIT AVAILABLE SEPERATELY (EM2-BMK)
VIBRATION:
MEETS REQUIREMENTS OF ANSI C136.31-2010
UP TO 6G FOR 100,000 CYCLES
WARRANTY:
STANDARD FIVE YEAR LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP
COMPLIANCES:
ETL/CETL CERTIFIED TO:
UL 1598 SUITABLE FOR WET LOCATIONS
UL 1598A MARINE OUTSIDE TYPE (SALTWATER)
CSA C22.2 NO 250.0 EQUIVALENT
CE
IP66
ABS
DLC (PENDING ON SELECT MODELS)
SIZE:
HEIGHT: 14.30 INCH (363MM) INCLUDING BRACKET
WIDTH: 16.33 INCH (415MM)
DEPTH: 8.68 INCH (220MM)
WEIGHT:
23.2 LBS (10.5KG)
