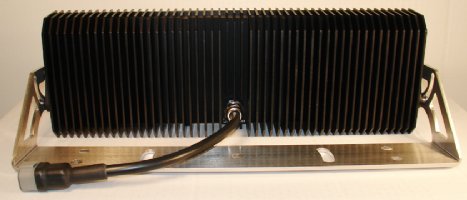

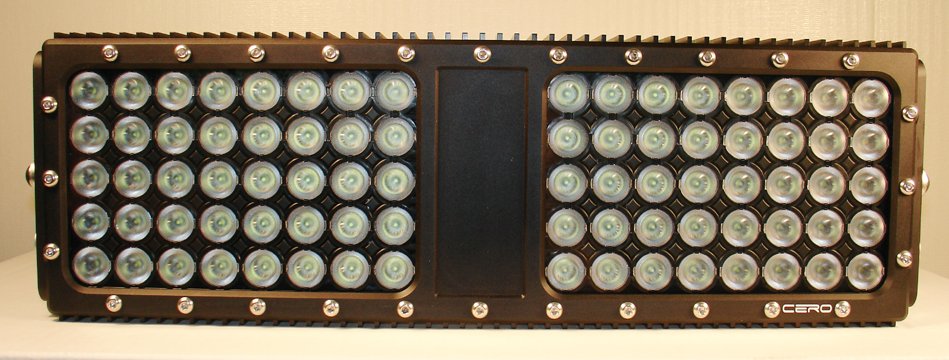

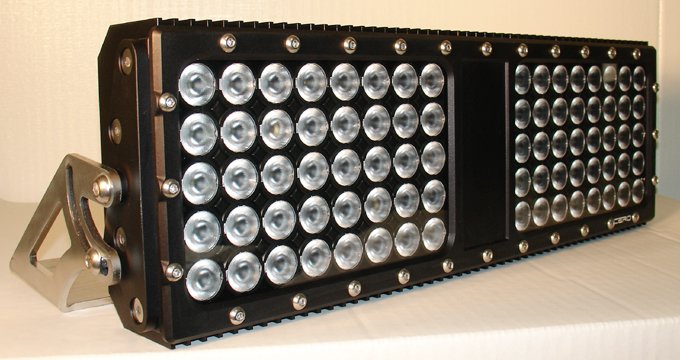

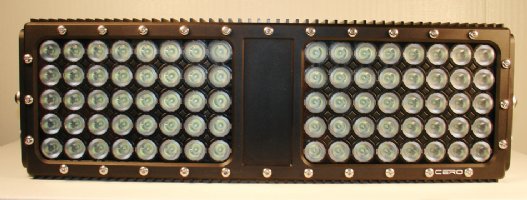

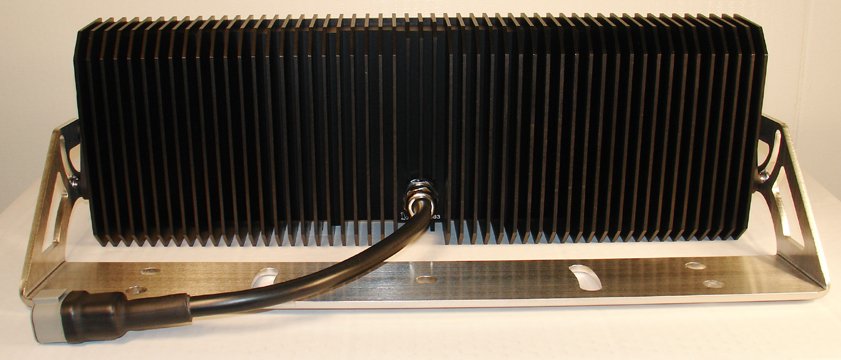

FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
|
|
|
|
SKU: HD80-270W-18-CWGDB
FLOODLIGHT, HIGH PERFORMANCE LED, 270 WATT, 18-32VDC, TYPE II BLACK ANODIZED BODY, 6000K COOL WHITE, 316 STAINLESS STEEL HARDWARE, CERO SYSTEMS More details... |
|
BRACKET COLOR:
OPTICS:
|
|
|
FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
FLOODLIGHT LED 270W TYPE II BLACK ANODOZED 18-32VDC CERO SYSTEMS (HD80-270W-18-CWGDB)
|
| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
HD80-270W-18-CWGDB
MANUFACTURER: CERO SYSTEMS
DESCRIPTION:
FLOODLIGHT, 270 WATT HIGH OUTPUT LED, OPERATING VOLTAGE 18-32VDC, 6000K COOL WHITE, ALPHA SERIES, MARINE DUTY LIGHTING FIXTURE, 80 CREE LED’S, IP68 INGRESS PROTECTION, CNC MACHINED FROM A SINGLE AEROSPACE ALUMINUM BLOCK, TYPE II BLACK ANODIZED BODY, TEMPERED PYREX LENS, 316 STAINLESS STEEL BRACKET, STAINLESS STEEL HARDWARE, INTEGRATED DUAL ZONE THERMAL MANAGEMENT, REDUNDANT INTELLIGENT DRIVERS
FEATURES:
80 CREE XP-G R5 HIGH EFFICIENCY (135LM/W) PERFORMANCE LEDS
LED EFFICIENCY = 135 LUMENS PER WATT
80 INTERCHANGEABLE HIGH-EFFICIENCY TIR OPTICS
INTEGRATED THERMAL MANAGEMENT
NICKEL-PLATED BRASS CABLE COUPLING ELIMINATES CHEMICAL INGRESS
DEUTSCH® DT CONNECTOR W/ GOLD PLATED SOLID CONTACTS
100% CNC MACHINED 6061-T6 ALUMINUM CHASSIS
316 STAINLESS STEEL HARDWARE
SHOCK MOUNTING SYSTEM ABSORBS HEAVY SHOCK AND VIBRATIONS
HEAVY-DUTY STAINLESS STEEL CUSTOMIZED BRACKETS FOR ANY APPLICATION
TYPE II UV STABLE BLACK ANODIZED FINISH
3MM HALF-TEMPERED PYREX® (BOROSILICATE) UV SHIELDED LENS
CONNECTOR - DEUTSCH DTP04-4P (MATES TO DEUTSCH DTP06-4S)

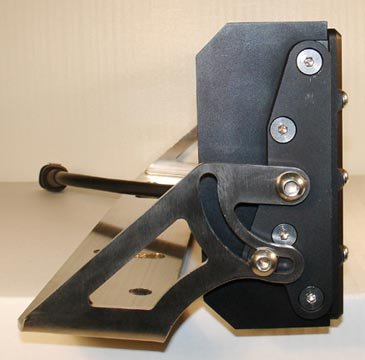

TILT (+20 DEGREE TO -70 DEGREE)
SPECIFICATIONS:
POWER CONSUMPTION - 270W MAX
CURRENT DRAW @28VDC - <9.7 AMPS
LIFE EXPECTANCY - 50,000 HRS
RoHS / LEAD-FREE COMPLIANT
INGRESS PROTECTION - IP68
SHOCK ABSORBING CAPACITY - >20G
LIGHT OUTPUT:
RAW: 27,800 LUMENS
EFFECTIVE: 24,800 LUMENS
WARRANTY:
LIFETIME LIMITED
SIZE:
HEIGHT: 15.9CM (6.3 INCHES)
WIDTH: 49.5CM (19.5 INCHES)
DEPTH: 7.6CM (3.0 INCHES)
WEIGHT: 6.8KG (15.3 LBS.)
MADE IN THE USA
OPTIONS:
- LED AVAILABLE IN COOL WHITE, WARM WHITE, AMBER, RED/ORANGE & INFRARED 850nm & 940nm
- SOLID ALUMINUM BODY AVAILABLE IN BLACK, TAN, WHITE & SILVER
- STAINLESS STEEL BRACKETS AVAILABLE IN SHINY BLACK, BRUSHED STEEL & WHITE
- HARDWARE AVAILABLE IN CHROMIUM & POLISHED STEEL
- LIGHT PATTERN OPTIONS - SPOT (11 DEGREE), MEDIUM (26 DEGREE), WIDE (46 DEGREE) & HORIZONTAL ELLIPTICAL (38 DEGREE X 21 DEGREE)
- LENS AVAILABLE IN TEMPERED UV PYREX GLASS OR UV LEXAN
CORROSION PROTECTION:
STAINLESS STEEL
TYPE 2 ANODIZED ALUMINUM
GOLD PLATED ELECTRONICS
HARDENED GLASS LENSES
NICKEL PLATED STRAIN RELIEFS
PEROXIDE CURED SEALS
PMMA OPTICS
VIBRATION PROTECTION:
SOLID AEROSPACE ALUMINUM CONSTRUCTION
SHOCK ISOLATED MOUNTS
HEAVY DUTY BRACKETS WITH 2 SET SCREWS ON EACH SIDE
INTERNAL SHOCK DAMPING OPTIC ARRAYS
POLYCARBONATE OPTIC SUPPORT
XYZ BALANCED CENTER OF MASS
TEMPERED GLASS LENS
FLOATING DESIGN
RELIABILITY:
REDUNDANT INTELLIGENT ELECTRONICS
ISOLATED LED ARRAYS
AUTOMATIC REROUTING CIRCUITRY
ACTIVE THERMAL MANAGEMENT
EMI FILITRATION
TRANSIENT VOLTAGE PROTECTION
OVER VOLTAGE PROTECTION
INDUSTRY LEADING THERMAL & ELECTRONIC EFFICIENCY
NOTE:
AN LED POWER SUPPLY IS NECESSARY FOR THE HD80 IF YOUR INPUT VOLTAGE IS SOMETHING OTHER THAN 20 - 32VDC. WE RECOMMEND THE (IP67 RATED) EXCELSYS LXV300-024SW FOR INPUT VOLTAGES OF 100 - 277VAC
|
|
|
|
