FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|
|
|
|
|
SKU: HD16-85W-10-CWGDW
FLOODLIGHT, HIGH PERFORMANCE LED, 85 WATT, TYPE II WHITE ANODIZED BODY, 10-32VDC, 6000K COOL WHITE, 316 STAINLESS STEEL HARDWARE, CERO SYSTEMS More details... |
|
BRACKET COLOR:
OPTICS:
|
|
|
FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|
FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|
FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|
FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|
FLOODLIGHT LED 85W TYPE II WHITE ANODIZED 10-32VDC CERO SYSTEMS (HD16-85W-10-CWGDW)
|

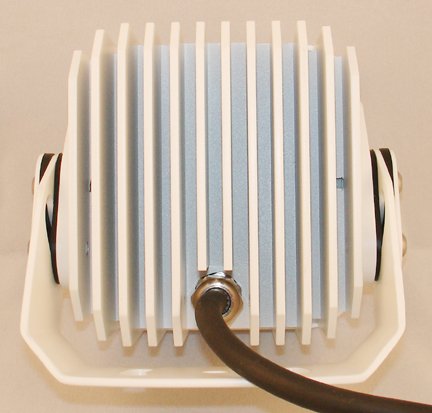

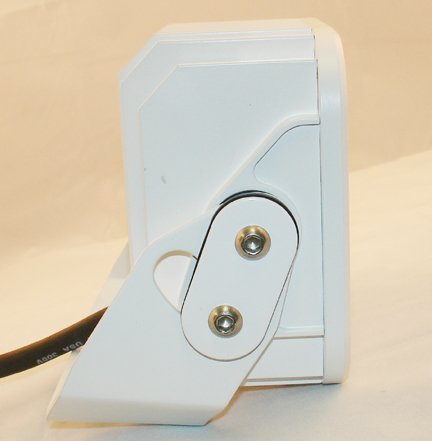

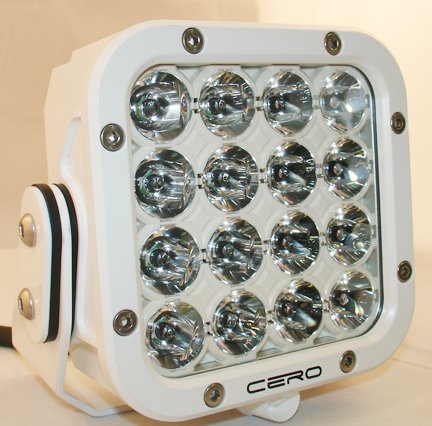

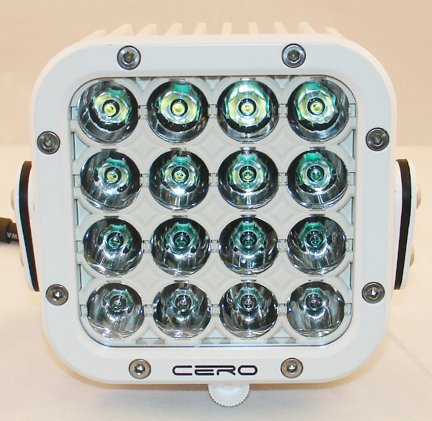

| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
HD16-85W-10-CWGDW
MANUFACTURER: CERO SYSTEMS
DESCRIPTION:
FLOODLIGHT, 85 WATT HIGH OUTPUT LED, OPERATING VOLTAGE 10-32VDC, TYPE II WHITE ANODIZED BODY, 6000K COOL WHITE, ALPHA SERIES, MARINE DUTY LIGHTING FIXTURE, 16 CREE LED’S, IP68 INGRESS PROTECTION, CNC MACHINED FROM A SINGLE AEROSPACE ALUMINUM BLOCK, TEMPERED PYREX LENS, 316 STAINLESS STEEL HARDWARE, INTEGRATED DUAL ZONE THERMAL MANAGEMENT, REDUNDANT INTELLIGENT DRIVERS
FEATURES:
16 CREE XP-G R5 HIGH EFFICIENCY (135LM/W) PERFORMANCE LEDS
LED EFFICIENCY = 135 LUMENS PER WATT
16 INTERCHANGEABLE HIGH-EFFICIENCY TIR OPTICS
INTEGRATED THERMAL MANAGEMENT
NICKEL-PLATED BRASS CABLE COUPLING ELIMINATES CHEMICAL INGRESS
DEUTSCH® DT CONNECTOR W/ GOLD PLATED SOLID CONTACTS
100% CNC MACHINED 6061-T6 ALUMINUM CHASSIS
316 STAINLESS STEEL HARDWARE
SHOCK MOUNTING SYSTEM ABSORBS HEAVY SHOCK AND VIBRATIONS
HEAVY-DUTY STAINLESS STEEL CUSTOMIZED BRACKETS FOR ANY APPLICATION
TYPE II UV STABLE BLACK ANODIZED FINISH
3MM HALF-TEMPERED PYREX® (BOROSILICATE) UV SHIELDED LENS
CONNECTOR - DEUTSCH DTP04-4P (MATES TO DEUTSCH DTP06-4S)
TILT (+20 DEGREE TO -40 DEGREE)
SPECIFICATIONS:
POWER CONSUMPTION - 85W MAX
CURRENT DRAW @28VDC - <3.1 AMPS
LIFE EXPECTANCY - 50,000 HRS
RoHS / LEAD-FREE COMPLIANT
INGRESS PROTECTION - IP68
SHOCK ABSORBING CAPACITY - >10G
LIGHT OUTPUT:
RAW: 7,800 LUMENS
EFFECTIVE: 6,300 LUMENS
WARRANTY:
LIFETIME LIMITED
SIZE:
HEIGHT: 12.7CM (5.0 INCHES)
WIDTH: 13.9CM (5.5 INCHES)
DEPTH: 6.8CM (2.7 INCHES)
WEIGHT: 2.6KG (2.6 LBS.)
MADE IN THE USA
OPTIONS:
- LED AVAILABLE IN COOL WHITE, WARM WHITE, AMBER, RED/ORANGE & INFRARED 850nm & 940nm
- SOLID ALUMINUM BODY AVAILABLE IN BLACK, TAN, WHITE & SILVER
- STAINLESS STEEL BRACKETS AVAILABLE IN SHINY BLACK, BRUSHED STEEL & WHITE
- HARDWARE AVAILABLE IN CHROMIUM & POLISHED STEEL
- LIGHT PATTERN OPTIONS - SPOT (11 DEGREE), MEDIUM (26 DEGREE), WIDE (46 DEGREE) & HORIZONTAL ELLIPTICAL (38 DEGREE X 21 DEGREE), VERTICAL ELLIPTICAL (21 DEGREE X 38 DEGREE)
- LENS AVAILABLE IN TEMPERED UV PYREX GLASS OR UV LEXAN
CORROSION PROTECTION:
STAINLESS STEEL
TYPE 2 ANODIZED ALUMINUM
GOLD PLATED ELECTRONICS
HARDENED GLASS LENSES
NICKEL PLATED STRAIN RELIEFS
PEROXIDE CURED SEALS
PMMA OPTICS
VIBRATION PROTECTION:
SOLID AEROSPACE ALUMINUM CONSTRUCTION
SHOCK ISOLATED MOUNTS
HEAVY DUTY BRACKETS WITH 2 SET SCREWS ON EACH SIDE
INTERNAL SHOCK DAMPING OPTIC ARRAYS
POLYCARBONATE OPTIC SUPPORT
XYZ BALANCED CENTER OF MASS
TEMPERED GLASS LENS
FLOATING DESIGN
RELIABILITY:
REDUNDANT INTELLIGENT ELECTRONICS
ISOLATED LED ARRAYS
AUTOMATIC REROUTING CIRCUITRY
ACTIVE THERMAL MANAGEMENT
EMI FILITRATION
TRANSIENT VOLTAGE PROTECTION
OVER VOLTAGE PROTECTION
INDUSTRY LEADING THERMAL & ELECTRONIC EFFICIENCY
NOTE:
AN LED POWER SUPPLY IS NECESSARY FOR THE HD16 IF YOUR INPUT VOLTAGE IS SOMETHING OTHER THAN 10-32VDC. WE RECOMMEND THE (IP67 RATED) EXCELSYS LXV100-024SW FOR INPUT VOLTAGES OF 100 - 277VAC
|
|
|
|
