LED FIXTURE 8W HAZARDOUS DIALIGHT (RTO-2W07-005)
|
|
|
|
|
|
LED FIXTURE 8W HAZARDOUS DIALIGHT (RTO-2W07-005)
|
LED FIXTURE 8W HAZARDOUS DIALIGHT (RTO-2W07-005)
|
LED FIXTURE 8W HAZARDOUS DIALIGHT (RTO-2W07-005)
|
| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
RTO-2W07-005
MANUFACTURER: DIALIGHT
DESCRIPTION:

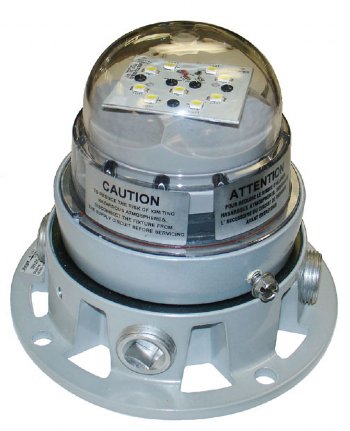

HAZARDOUS LOCATION 8 WATT LED (WHITE) LIGHTING FIXTURE, CEILING MOUNT WITH JUNCTION BOX, 120/240 VAC, 50/60HZ, DIECAST POWDER COATED ALUMINUM BASE WITH A UL STABILIZED ABRASION RESISTANT POLYCARBONATE LENS, WEATHER / CORROSION RESISTANT LAMP ASSEMBLY AND HOUSING, MOUNTING JUNCTION BOX INCLUDES 5-WAY ¾" NPT THREADED KO’S, OPERATING TEMPERATURE -40F TO +133F, CRI 70, CCT 4600-5600K.
WARRANTY: 5 YEARS
FEATURES & BENEFITS:
LOW POWER CONSUMPTION
INSTANT ON / OFF RESPONSE
WEATHER / CORROSION RESISTANT LAMP ASSEMBLY AND HOUSING
RESISTANT TO SHOCK AND VIBRATION
70% LUMEN MAINTENANCE AFTER 60,000 OPERATING HOURS
CERTIFICATIONS AND RATINGS:
CLASS 1, DIVISION 2, GROUPS A,B,C,D
HAZARDOUS ENVIRONMENTS T3C RATED
UL844
UL1598
CSA C22.2 #250
CSA C22.2 #137
TYPE 4X LED ENCLOSURE
APPLICATIONS:
REFINERY
OIL TANKER
OIL PLATFORM
CHEMICAL PLANT
ARCHITECTURAL GREEN LIGHTING APPLICATIONS
SIZE:
HEIGHT: 5.50"
WIDTH: 6.60" INCLUDING MOUNTING RING
WEIGHT: 2 LBS.
|
|
|
|
