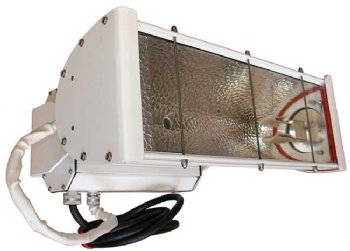

MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
|
|
|
|
|
MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
MARINE FLOODLIGHT 1000W HPS QUAD TAP PHOENIX PRODUCTS (MSR1000HPS-QV-SMH)
|
| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
MSR1000HPS-QV-SMH
MANUFACTURER: PHOENIX PRODUCTS
DESCRIPTION:
PHOENIX MARINE FLOODLIGHT, 1000 WATT, HIGH PRESSURE SODIUM,
120/208/240/277 VOLT QUAD TAP MARINE RATED BALLAST, 60HZ,
LAMP NOT INCLUDED.
NOTE: COMPARED TO SIMILAR WATTAGE FIXTURES AVAILABLE FROM OTHER MANUFACTURERS, THIS FIXTURE IS EXTREMELY LIGHTWEIGHT AND VERSATILE. IT IS IDEAL FOR VESSEL PERIMETER LIGHTING APPLICATIONS WHERE FIXTURES ARE TEMPORARILY SET UP AND UTILIZED WHILE IN PORT THEN STORED WHILE AT SEA. THIS FIXTURE HAS A VERY SPECIFIC LIGHT PATTERN COMMONLY KNOWN AS A "BATWING" PATTERN. A BATWING PATTERN DISTRIBUTES THE LIGHT VERY EVENLY AND IN A RECTANGULAR FASHION WHEN AIMED STRAIGHT DOWN OR AT A SLIGHT ANGLE. THIS MAKES FOR A PERFECT PATTERN FOR HULL PERIMETER LIGHTING AND ALSO FOR SOME GENERAL LIGHTING ON ABOVE DECK APPLICATIONS. THIS FIXTURE DOES NOT PRODUCE A "BRIGHT SPOT" AT THE CENTER OF THE BEAM PATTERN WHICH MEANS FEWER MSR FIXTURES ARE NEEDED TO COVER A SPECIFIC AREA.
FEATURES:
HOUSING: HEAVY-WALL, LOW COPPER CONTENT, RIBBED EXTRUDED ALUMINUM HOUSING FOR GREATER STRENGTH AND CORROSION RESISTANCE
SOCKET: LAMP GRIP SOCKET KEEPS LAMP FIRMLY IN PLACE, PROLONGED LAMP LIFE
LENS: TEMPERED GLASS LENS TO RESIST HEAT AND THERMAL SHOCK
GASKET: SILICONE GASKET FOR WATERTIGHT SEAL
DOOR ASSEMBLY: CAPTIVE SIDE ENTRY DOOR ALLOWS FOR EASY ACCESS TO LAMP CHAMBER
REFLECTOR: HAMMER-TONE ALUMINUM REFLECTOR PROVIDES A POWERFUL EFFICIENT BEAM SPREAD. BAT WING PATTERN PROVIDES A UNIFORM DISTRIBUTION OF LIGHT OVER A WIDE AREA
FINISH: THERMOSET, WHITE POWDER COATED FINISH PROVIDES GREAT CORROSION RESISTANCE
BALLAST: MARINE RATED EXTERNAL BALLAST EXTENDS ELECTRICAL COMPONENT LIFE BY REDUCING OPERATING TEMPERATURE
MOUNTING: SURFACE MOUNT PLATES PROVIDE TWO MOUNTING OPTIONS
HARDWARE: STAINLESS STEEL
APPROVALS:
UL LISTED STANDARD 1598A (MARINE OUTSIDE TYPE SALTWATER)
MEETS US COAST GUARD REQUIREMENTS
INDOOR / OUTDOOR NEMA 4 ENCLOSURE
DIMENSIONS:
WIDTH: 19.67"
HEIGHT: 11.307"
DEPTH: 16.071"
WEIGHT: 59 LBS.
PLEASE CALL FOR OTHER OPTIONS AND ACCESSORIES
|
|
|
|
