MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|
|
|
|
|
|
MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|
MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|
MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|
MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|
MARINE FLOODLIGHT 400W HPS QUAD TAP PHOENIX PRODUCTS (MSR400HPS-QV-SMH)
|

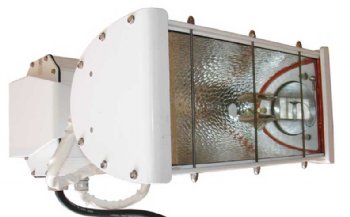

| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
MSR400HPS-QV-SMH
MANUFACTURER: PHOENIX PRODUCTS
DESCRIPTION:
PHOENIX MARINE FLOODLIGHT, 400 WATT HIGH PRESSURE SODIUM,
120/208/240/277 VOLT QUAD TAP MARINE RATED BALLAST, 60HZ,
LAMP NOT INCLUDED.
NOTE: THIS FIXTURE HAS A VERY SPECIFIC LIGHT PATTERN COMMONLY KNOWN AS A "BATWING" PATTERN. A BATWING PATTERN DISTRIBUTES THE LIGHT VERY EVENLY AND IN A RECTANGULAR FASHION WHEN AIMED STRAIGHT DOWN OR AT A SLIGHT ANGLE. THIS MAKES FOR A PERFECT PATTERN FOR HULL PERIMETER LIGHTING AND ALSO FOR SOME GENERAL LIGHTING ON ABOVE DECK APPLICATIONS. THIS FIXTURE DOES NOT PRODUCE A "BRIGHT SPOT" AT THE CENTER OF THE BEAM PATTERN WHICH MEANS FEWER MSR FIXTURES ARE NEEDED TO COVER A SPECIFIC AREA.
FEATURES:
HOUSING: HEAVY-WALL, LOW COPPER CONTENT, RIBBED EXTRUDED ALUMINUM HOUSING FOR GREATER STRENGTH AND CORROSION RESISTANCE
SOCKET: LAMP GRIP SOCKET KEEPS LAMP FIRMLY IN PLACE, PROLONGED LAMP LIFE
LENS: TEMPERED GLASS LENS TO RESIST HEAT AND THERMAL SHOCK
GASKET: SILICONE GASKET FOR WATERTIGHT SEAL
DOOR ASSEMBLY: CAPTIVE SIDE ENTRY DOOR ALLOWS FOR EASY ACCESS TO LAMP CHAMBER
REFLECTOR: HAMMER-TONE ALUMINUM REFLECTOR PROVIDES A POWERFUL EFFICIENT BEAM SPREAD. BAT WING PATTERN PROVIDES A UNIFORM DISTRIBUTION OF LIGHT OVER A WIDE AREA
FINISH: THERMOSET, WHITE POWDER COATED FINISH PROVIDES GREAT CORROSION RESISTANCE
BALLAST: MARINE RATED EXTERNAL BALLAST EXTENDS ELECTRICAL COMPONENT LIFE BY REDUCING OPERATING TEMPERATURE
MOUNTING: SURFACE MOUNT PLATES PROVIDE TWO MOUNTING OPTIONS
HARDWARE: STAINLESS STEEL
APPROVALS:
UL LISTED STANDARD 1598A (MARINE OUTSIDE TYPE SALTWATER)
MEETS US COAST GUARD REQUIREMENTS
INDOOR / OUTDOOR NEMA 4 ENCLOSURE
DIMENSIONS:
WIDTH:
HEIGHT:
DEPTH:
WEIGHT: 46 LBS.
PLEASE CALL FOR OTHER OPTIONS AND ACCESSORIES
|
|
|
|
