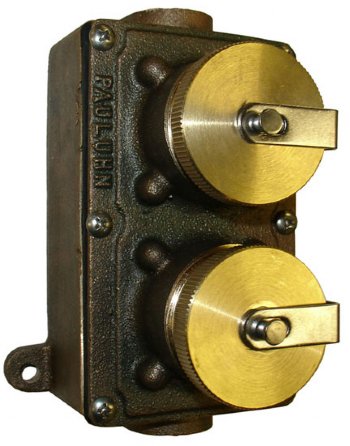

| (Click to see larger image and other views) |
|
|
|
|
| |
|
Product Details
|
2614B-125
MANUFACTURER: PAULUHN ELECTRIC MFG.
DESCRIPTION:
PROCONNECT-PS 261/MW
MARINE WATERTIGHT RECEPTACLE 2-GANG, BRONZE, SURFACE MOUNT
FURNISHED WITH 2 EACH INTERIORS FOR RECEPTACLES, 20 AMP, 2-POLE 3-WIRE, 125VAC, U-GROUND, STRAIGHT BLADE TYPE, SOLID BRASS INSERTS AND SCREW TERMINALS, YELLOW, FURNISHED WITH GASKET AND STAINLESS STEEL SCREWS
HOUSING:
HEAVY GRADE MARINE GRADE BRONZE (UNITS HAVE NATURAL FINISH CASTINGS)
HARDWARE:
STAINLESS STEEL
OUTLETS:
ALL UNITS ARE FURNISHED BLANK BUT CAN BE SUPPLIED WITH UP TO TWO 3/4" NPT OUTLETS
APPROVALS:
USCG
ABS - AMERICAN BUREAU OF SHIPPING
TYPE 4X
APPLICATIONS:
MARINE & WET ENVIRONMENTS
OFFSHORE OIL & GAS PLATFORMS
DRILL SHIPS & EXPLORATION VESSELS
TANKERS
FERRIES / PASSENGER SHIPS
DIMENSIONS:
WIDTH: 4-3/4" (BETWEEN MOUNTING HOLES)
HEIGHT: 3-15/16" (BETWEEN MOUNTING HOLES)
DEPTH: 3-13/16" (FROM FLAP COVER)
WEIGHT: 5-1/2 LBS.
PLEASE CALL FOR OPTIONS AND ACCESSORIES
|
|
|
|
