LBYB-12-39WH-HV
MANUFACTURER: E-LED LIGHTING
DESCRIPTION:

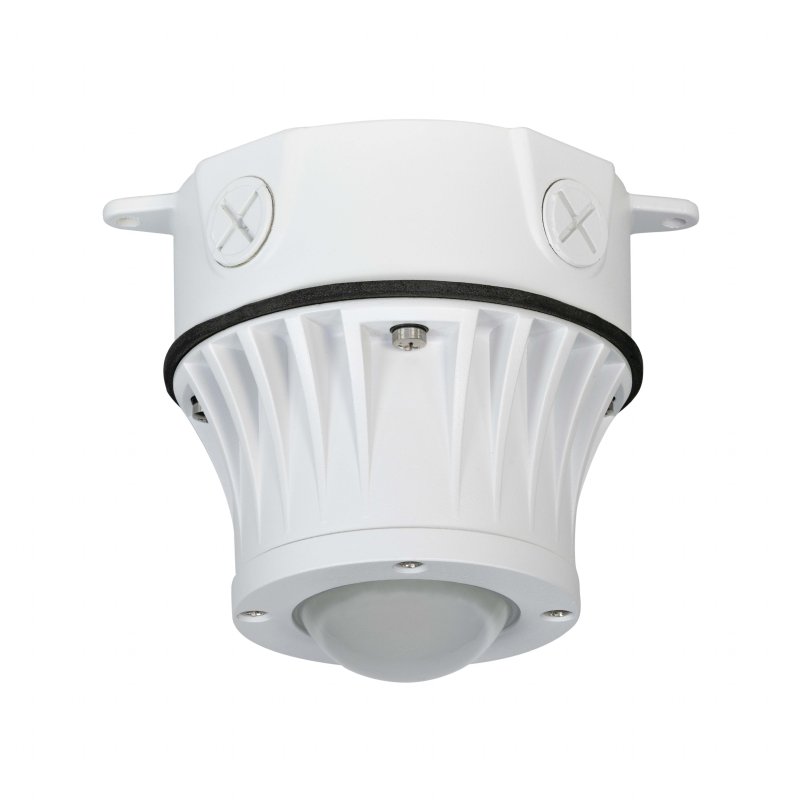

LED BULLEYE FIXTURE (BASE MOUNT), 12 WATT, 85V-265V AC, 50-60HZ, 3900K COLOR TEMPERATURE (NEUTRAL WHITE), 180 DEGREE BEAM ANGLE, 100 LUMENS PER WATT = 1200 LUMENS, WHITE FINISH, POWDER COATED ANODIZED SEAWATER RESISTANT ALUMINUM, 316 STAINLESS STEEL HARDWARE, POTTED DRIVER, OVERLOAD, OVER-VOLTAGE, OVER-TEMPERATURE & SHORT CIRCUIT PROTECTION, SURFACE MOUNT, 5 X M20 POLYAMIDE CABLE GLAND, WEGO WIRE CONNECTORS, ISOLATION PAD PROVIDED, IP67
LIGHT SOURCE:
12 WATT CERAMIC LED
100 LUMENS PER WATT
3900K (NEUTRAL WHITE)
CRI +85
POWER CONSUMPTION:
12 WATT
OPERATING VOLTAGE:
85V-265V AC, 50-60HZ
BEAM ANGLE:
180° DEGREE
FIXTURE MATERIAL:
POWDER COATED ANODIZED SEAWATER RESISTANT ALUMINUM
316 STAINLESS STEEL HARDWARE
BASE MOUNT
IP RATING: IP67
WIRING:
HOT (BLACK), WHITE (NEUTRAL), GREEN/YELLOW (GROUND)
5 X KO’S FOR WIRING (4 PLUGGED)
M20 POLYAMIDE CABLE GLAND PROVIDED
3 WEGO WIRE CONNECTORS PROVIDED
DIMENSIONS:
WIDTH: 143MM (5.63 IN) (OUTSIDE OF MOUNTING EARS)
WIDTH: 131MM (5.16 IN) (BETWEEN MOUNTING EAR HOLES)
HEIGHT: 115MM (4.53 IN)
WEIGHT: 1.43 LBS (.65KG)
COMPLIANCES:
IN COMPLIANCE WITH RULES OF MARITIME CLASSIFICATION SOCIETIES, ADDITIONAL VDE AND IEC 60092-306
NOTE: THIS FIXTURE IS PROVIDED WITH A RUBBER ISOLATION PAD, THIS PAD WILL ISOLATE THE FIXTURE FROM THE VESSEL IN CASE OF VOLTAGE LEAKAGE AT THE GROUND WIRE. ISOLATING THE FIXTURE FROM THE VESSEL WILL PREVENT ELECTROLYSIS AND INCREASE THE LIFE OF THE FIXTURE
